Clamp on Ultrasonic Flow meter for liquids in ATEX zones, CODminisonic2000


The CODMinisonic2000 Flow Meter for ATEX Zones

  • Suitable for pipes 10mm to 3300mm outside diameter and all liquid products.
  • Available as a dual chord, giving you better accuracy in poor flow conditions
  • Available as dual Pipe, one converter able to measure flow in two pipes.
  • A display of the flow rate and volume, direction and flow velocity
  • Two 4-20mA outputs, 2 relays, serial link, and software for PC as standard

New technology building on Ultraflux's almost 40 years of experience gives the user numerous features including:

  • Measurement technology 'ESC' (or Echo Shape Control)
  • High measurement resolution
  • High amplification gain range and noise rejection
  • Ergonomic keypad and menu calibration backlit display as standard

Typical Applications:

  • Virtually all liquids whether they are conductive or non-conductive, including ultra-pure water, potable water, wastewater, oil products, chemicals.
  • "difficult" applications including entrained solids, encrusted pipework and foodstuffs.

Benefits:

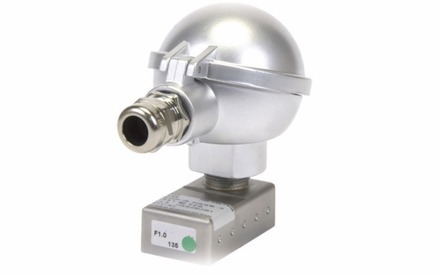

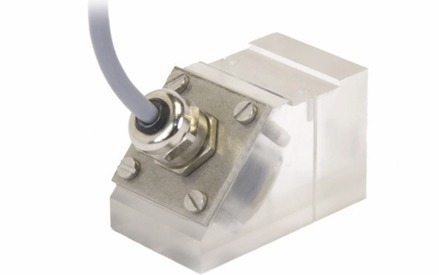

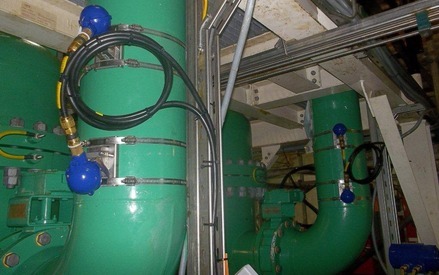

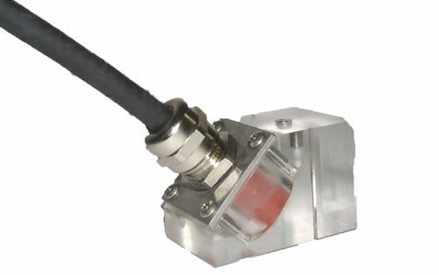

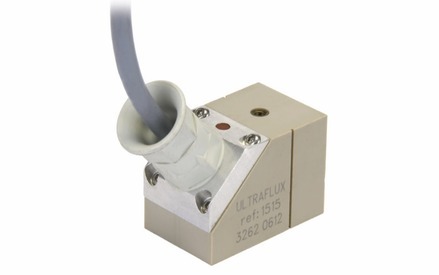

  • Uses clamp-on probes fitted to the outside of your pipe. Easy installation on a pipe without shutdown or interruption of the flow
  • Flow reading accuracy with common liquids (water)
  • Accuracy up to 0.5%
  • Repeatability up to 0.5%
  • Linearity up to 0.5%
  • No pressure drop
  • No moving parts
  • No routine servicing (no moving parts means no recalibration requirements)
  • Bidirectional measurements
  • Fast response time
