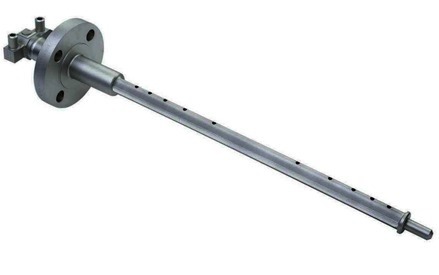

Systec Deltaflow DF44 Averaging Pitot Tube


Deltaflow Averaging Pitot Tube from Systec for Gas, Steam and Liquids

The deltaflow flow meter from Systec is a high specification insertion Pitot Tube. Systec hold several patents on the deltaflow technology.

Due to the special probe profile the deltaflow flow meter can ensure a high level of precision and excellent process viability, even in extreme conditions causing the lowest residual pressure loss. The deltaflow flow meter is installed in several thousand locations.

Product summary

Media:

  • Gas
  • Steam
  • Liquids

Operating conditions:

  • -200 < 550 °C
  • 0..160 bar pure to extremely contaminated, aggressive
  • media EEx ia TRD
  • Accuracy: better 1%
  • Bi-directional, Measurement Range > 1:30
  • Certifications: Ex / ATEX / 3.1 / 2.2 / PED97/23/EG

Certificates required/ acceptances:

  • Germany's 13th and 17th BImSchV Federal Emission-Control Ordinances for moist, condensed, contaminated, aggressive flue gases.
  • Tested according to TRD for high pressure steam and boiler feed water
  • PtB-proved accuracy of more than 1% of the measured value
  • Manufactured according to DIN EN ISO 9000:2001
