The MinisonicIIP, is a Portable Clamp-on Flow Meter

The MinisonicIIP is a portable clamp on ultrasonic flow meter suitable for measuring liquids in full pipes. It has an internal battery and has a visual display and an internal data logger it also has a 4-20mA & Pulse Output.
Portable clamp on flow meters are perfect for checking your flows in applications such as pump performance testing, flows across heat exchangers, fire hydrant testing and general water consumption recording and many others.

Clamp on Ultrasonic meters do not need you to change your pipework, stop your flows or even inserting anything into your pipework, thereby saving you time and money.

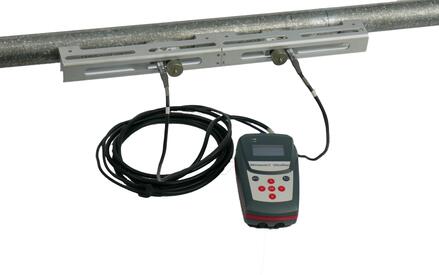

The MinisonicIIP is user friendly and can be setup in under 2 minutes, this allows rapid viewing and logging of your flow data. The sensors connect to the outside of your pipework via strong magnets. (or our supplied straps for non-metallic pipes) Using the MinisonicIIP’s advance signal processing you can obtain a flow accuracy of 98% or better.

Logger data is recorded at user interval selected from 1 second to 1 day and can be downloaded directly to your USB data drive (supplied) so no need for software installation on your computer system. Then the data can be imported into your preferred spreadsheet for analysis.
It's internal battery lasts  around 20 hours using the power-saving mode, this can be further extended with AC or DC power inputs.

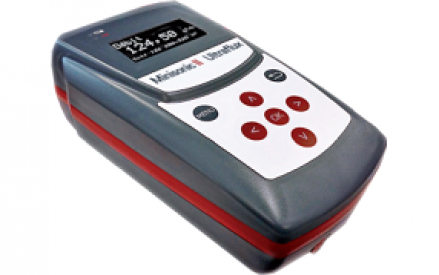

The MinisonicIIP has an O-LED that so can be used even in direct sunlight.
On the MinisonicIIP display you can see signal health data such as Signal Strength, Signal Quality and Speed of Sound, along with a visualisation of your ultrasonic echo, giving you full confidence in your flow readings.

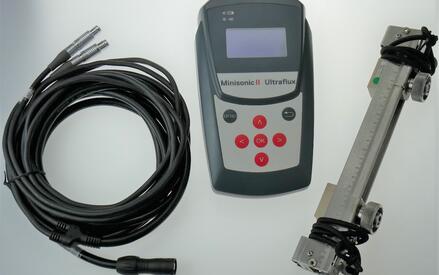

The MinisonicIIP is small and handheld and comes in a protective case that contains all your need to get your flow measurements (MiniP, Charger, Cables, Sensors, Gel, tap measure etc..)

Flow output filtering and Zero-point adjustment available
housing ABS • 740 g • 220 x 115 x 74 mm IP68
The Minisonic IIP is Suitable for pipes from 6mm to 10 meters

Multiple sensor choices to suit your applications needs. Contact Flowline for more information.
