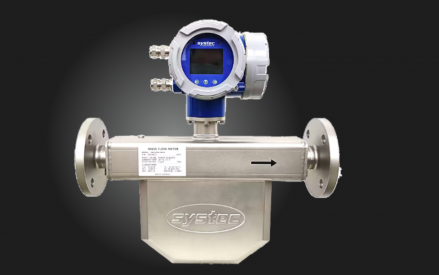

The SYS-SMF, an Inline Coriolis Mass Flow Meter
The SYS-SMF from Systec, is an inline corriolis mass flow meter that is a highly accurate flow meter and competitively priced. It will measure and outputs mass & volume flow, along with the density and temperature of your liquid or gas flows.
The SYS-SMF needs no inlet or outlet straight pipe runs this simplifies your install location selection.
It will also measure your flows in both directions giving you extra information on your process.
With a measurement error of less than 0.2% you get a highly accurate and reliable mass flow meter output.
The SYS-SMF comes with a 4-20mA, pulse and frequency outputs as standard. You can add in HART, Modbus or an additional 4-20mA output. This allows easy connectivity to your control systems.

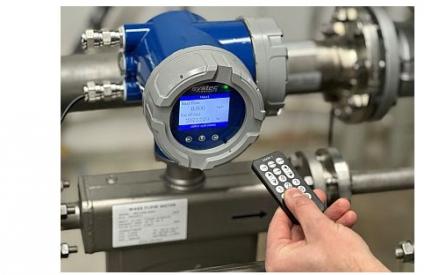

It comes with an InfraRed remote control for easy programming, no more removing covers and multiply button pressing.

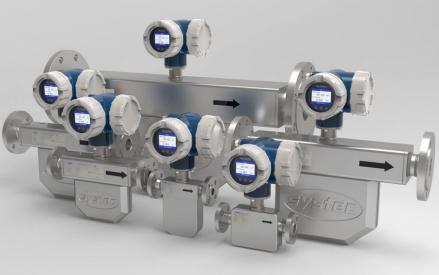

The SYS-SMF is available in sizes from 15-100mm diameter, with a range of end connections, for easy installation into your application.
Also available in high pressure or high temperature version withs ATEX option available.
Typical Applications
Dosing and Batch tasks
Chemical or pharmaceutical
Additive dosing in the hydrocarbon industry
transfer applications such as;
Fuels, detergents and solvents, cosmetics, chemicals, oils, fats, alcohol, fruit concentrates, juices, beer, gases and liquefied gases.
Specification
The SYS-SMF is available in sizes from 15-100mm diameter with end connections DIN, ANSI, GB/T, HG/T, up to PN160 / ANSI 900. In
It can be powered from 18-230V AC/DC.
Temperature range of -50<+150oc (optional LT -200<+50oc and HT 0-350oc)
Pressure range of up to 160Bar dependant on end connections.
Outputs 4-20mA, Pulse and Frequency, optional Modbus, HART and addtion 4-20mA
DN15 for flow of up to 625kg/hr
DN20 for flow of up to 1300 kg/hr
DN25 for flow of up to 2700 kg/hr
DN40 for flow of up to 5100 kg/hr
DN50 for flow of up to 9000 kg/hr
DN80 for flow of up to 32000 kg/hr
DN100 for flow of up to 85000 kg/hr
