Interface and Pig Detector, Clamp On Ultrasonic - PSD


Minisonic PSD

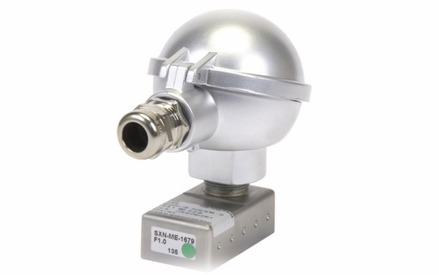

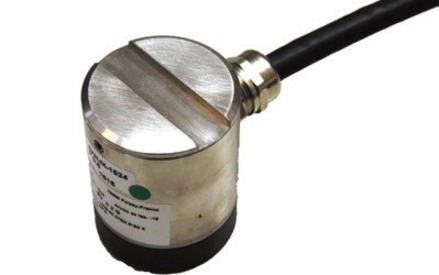

Minisonic PSD (Pig * Sphere Detector) permits the detection of the passage of spheres and pigs in a pipeline. This detection is made when an acoustic signal transmitted through the pipe wall is interrupted. An external probe is used for liquids and an intrusive probe for gas.

* a Pig is a scraper or a separating sphere.

Typical Applications:

  • Detection in a pipeline and counting the passage of spheres which separate the fluids for the monitoring of oil products or gas transportation and for the detection of product changes.
  • All pipe diameters from 4 " to 60"

Advantages:

  • high-velocity pig and sphere detection possible
  • detection independent of the flow direction
  • the probe can be buried
  • easy of installation without cutting the pipe or the stopping of your process
  • no routine servicing needed
  • no pressure drop
  • no moving parts
  • no straight length of pipe needed
  • Fast response time
  • no recalibration
