Oil on Water Detector Stainless Steel, Non Contact, ROW

Summary

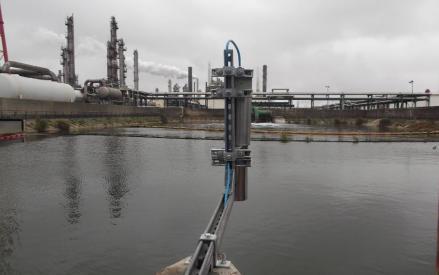

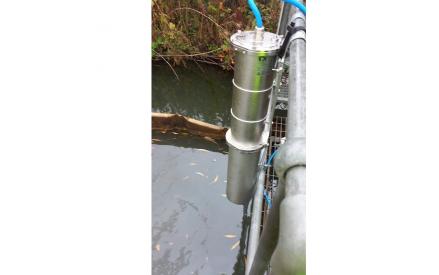

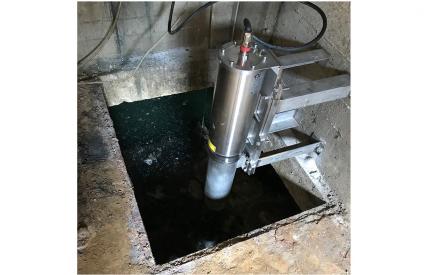

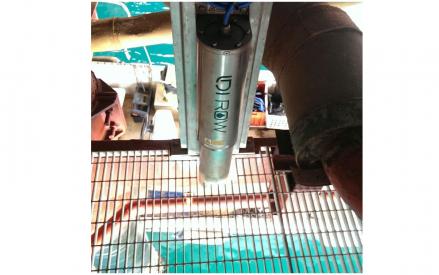

The ROW (Remote Optical Watcher) is an autonomous non-contact sensor that detects oil on water and land. The system requires no routine cleaning, and can be used on still or fast-moving water flows is robust and easy to install. The aluminum sensor is the most widely used version and is suitable for non-aggressive non-ATEX locations.

Ideal for use in combination with our range of non-contact radar flow meters.

 Features and Benefits

• Non-contact, cannot get fouled, no routine cleaning needed.
• Low power consumption, ideal for remote off-grid locations.
• Sealed enclosure for maximum robustness.
• Can be located up to 10m from the water surface.
• Configured via free software. Detection sensitivity and output alarm settings fully configurable.
• Onboard diagnostics.

 Technical Details

• Sensitivity: > 1 micrometer oil film.
• Maximum Range to the surface: 10m
• Operation temperature: -30 to +60 Deg C
• Enclosure: Stainless Steel, 611x139x139mm
• Protection: IP68
• Outputs:4-20mA, Relay Contact, RS-485
• Power supply: 12VDC. <2W

 Applications

• Effluent Works Inlet Flows
• Power Station Discharges
• Oil storage facilities
• Harbors
• Airport runoff flows
• Road Tanker Loading facilities
• Sewer flows
