The Minisonic, Clamp on Flow Meter.


The Minisonic, Clamp on Flow Meter

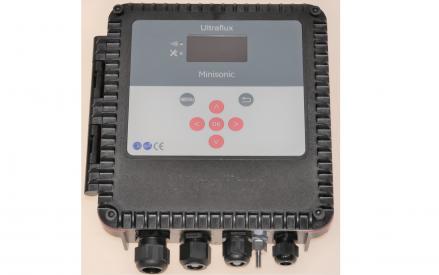

The Minisonic is a Clamp on Ultrasonic Flow Meter suitable for liquids in full pipes. It is available in an AC or DC version and has a visual display and an internal logger it also has a 4-20mA & Pulse Outputs and Optional Modbus.

Clamp on flow meters are perfect for retroting application where pipework cannot be changed or flows cannot be stopped.

Benefits of the Minisonic clamp on flow meter
Clamp on flow meters use clamp-on sensors (without any contact with the liquid)

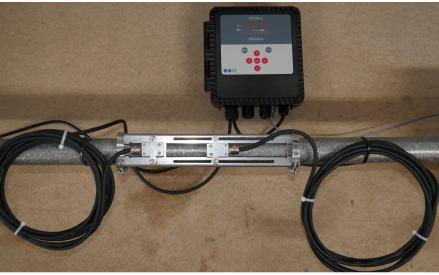

Clamp on sensors are easily installed on your pipe without shutdown or any interruption to the flow
Flow reading accuracy with common liquids (water) Accuracy up to 1%
Repeatability up to 0.5%
Linearity up to 0.5%
No pressure drop
No moving parts
No routine servicing is required (no recalibration)
Bidirectional measurements
Fast response time

Typical Clamp on flow meter Applications:
Suitable for virtually all liquids whether they are conductive or non-conductive.
Applications such as drinking water, wastewater, cooling water, and purified water.
Applications where no pressure drop is acceptable, such as test rigs, power generation.
Food industry Hygienic applications, such as pure water, de-ionized, CIP supervision.
"difficult" applications including entrained solids, encrusted pipework, and foodstuffs.

The Minisonic flowmeter specification includes:
Minisonic is suitable for pipes from 6mmOD in diameter up to 10meters.
Minisonic has an internal datalogger, where data is download to your USB data drive (no need for PC software).

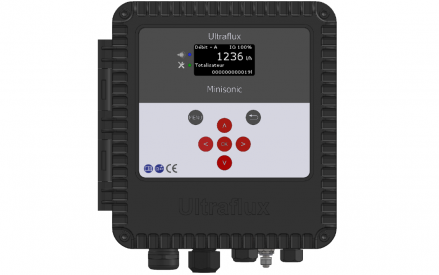

Minisonic has an OLED display & keypad for Flow, quality and echo output and user programming.

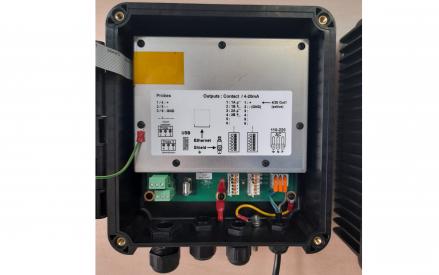

Minisonic has a single 4-20mA output, 2 relays, TCP IP via Ethernet and Optional Modbus RTU over RS485.
Measurement technology 'ESC' (or Echo Shape Control).
High measurement resolution, giving increased accuracy even on small pipes
High amplification gain range with bad echo noise rejection
High Contrast OLED display and user keypad
The Minisonic is building on over 40 years of Flow excellence

Make an enquiry
Available Downloads
