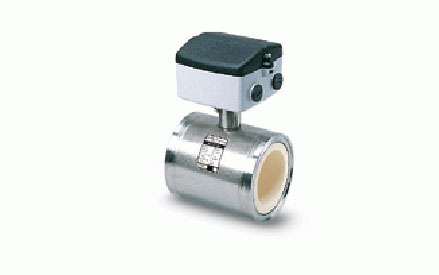

Electromagnetic Flow Meter, Chemical flows, MAG1100


Electromagnetic 1100 Chemical Magflo Meter

The industry standard electromagnetic flowmeter, available with a compact or remote converter.

Available size range 2mm to 100mm

Applications:

  • Conductive liquids
  • Operating temperature from -20 to +150°C (Ceramic) or -30 to +130°C (PFA)
  • Conforms to EEC directives: PED, LED, EMC
  • Corrosion-resistant AISI 316 stainless steel sensor housing
  • Highly resistant liner and electrodes fitting most extreme process media
  • Hose proof IP67/NEMA 4X enclosure rating
  • Compact wafer design meets EN 1092, DIN and ANSI flange standard

Easy to use:

  • Backlit alphanumeric display
  • Electronic unit and display can be rotated for easy viewing
  • Bidirectional flow measurement

High accuracy and repeatability:

  • ±0.42% of rate accuracy (MAG 5000 signal converter)
  • Optional ±0.21% of rate accuracy available (MAG 6000 signal converter)
  • Calibrated on UKAS EN 45001 accredited calibration facilities with a +/- 0.1% uncertainty

Rugged construction:

  • No moving parts to wear down or clog
  • Simple onsite upgrade to IP 68 of a standard sensor
  • Suitable for direct burial and constant flooding

Easy maintenance and installation:

  • SENSORPROM™ technology provides automatic download of start-up settings
  • Self-diagnostics for easy troubleshooting

Applications:

  • Conductive liquids
  • Highly resistant to a wide range of chemicals
  • Process industry
  • Chemical industry
  • Pharmaceutical industry
  • Water treatment like e.g. chemical dosing

Easy to use:
  • Backlit alphanumeric display
  • Electronic unit and display can be rotated for easy viewing
  • Bidirectional flow measurement

High accuracy and repeatability:

  • ±0.42% of rate accuracy (MAG 5000 signal converter)
  • Optional ±0.21% of rate accuracy available (MAG 6000 signal converter)

Rugged construction:

  • No moving parts to wear down or clog
  • Simple onsite upgrade to IP 68 of a standard sensor

Easy maintenance and installation:

  • SENSORPROM™ technology provides automatic download of start-up settings
  • Self-diagnostics

Specification information can be found in the Model MAGFLO General Specification document.
