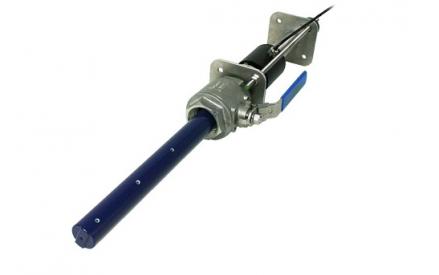

Insertion Mag meter, Torpee Mag

• Multi-electrode sensor delivering accurate total flow profile rivaling the performance of a full-bore meter (0,5% accuracy)
• Bidirectional measurement (optional)

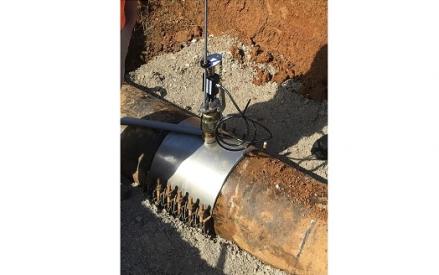

• Ease of hot tap installation without interrupting service
• Economical solution for medium & large line sizes reducing drastically installation costs (sizes from DN 100 to DN2500)
• Removable in pipes under pressure for inspection, cleaning, calibration or verification
• Sensor coated with food & beverage-certified epoxy coating
• Robust construction for operational longevity with rugged 316 stainless steel/aluminum sensor body
• Comes pre-calibrated from the Calibration Lab. with no moving parts, the sensor contains nothing to wear or break
• Made in Belgium

  DRINKING WATER

  • Distribution
  • Filter Balancing & Backwash
  • Pump Stations
  • UV Dosing
  • Well Water
  • Boosting Stations

  WASTEWATER

  • Effluent
  • Recycle/Reclaim

  INDUSTRIAL

  • Chilled Water
  • Cooling Water
