DIN Panel mount - Batch Controller - N410


Product description

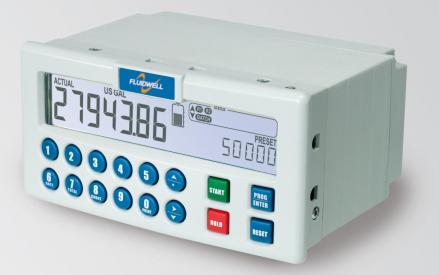

The N410 is a user-friendly batch controillor feauring a Numerical keypad, clear programming menu structure, easy to read display and simple mounting enclosure. The N410 is quick and easy to use with variing back batch sizes. It can be power via 24VDC or 110-230VAC

Advantages

  • Save time and cost with the easy to operate numerical keypad.
  • Familiar easy operation with the Fluidwell "Know one, know them all" configuration structure, saving time, cost and aggravation.

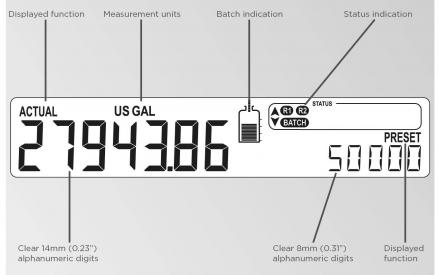

  • Key information at a glance as the display simultaneously shows actual value, preset value, batch process indication, switch point indication and measuring units.
  • Easy installation with the rugged aluminum

Alarm outputs
Function: Switched in case of a no-flow, external or system alarm.
Type: One configurable and field replaceable, very heavy duty, mechanical relay output (NO-NC) and one configurable transistor output.

Make an enquiry
Available Downloads
