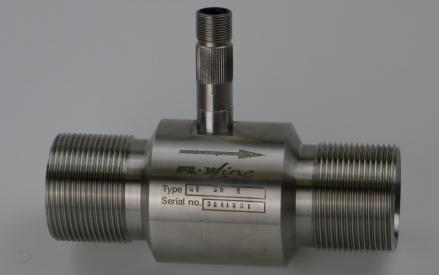

Inline Turbine Flow Meter for liquids, NT range, HIRE


High-quality Turbine Flow Meters suitable for most liquid flow applications.

Introduction

These turbine meters are an inexpensive flow measurement solution. Designed for liquid service in a wide range of applications. They provide a low-pressure drop and an expanded viscosity range. Various models are available to measure flow ranges from 0.5-5lpm all the way up to 200-2'000lpm

Description

Flow causes the multi-bladed rotor to turn at an angular velocity directly proportional to the velocity of the fluid measured. As the blades pass beneath a magnetic pickup coil, an AC signal is generated. Each pulse is equivalent to a discrete volume of fluid. Because the AC frequency is directly proportional to the rotor's angular velocity and the cross-sectional area of the meter is fixed, the frequency is directly proportional to the flow rate. The AC waveform generated is sinusoidal in nature, so it is easily transmitted to local or remote electronic instrumentation.

Product Benefits

  • Good repeatability of +/-0.1%
  • Corrosion resistant
  • Low pressure drop

Specifications

  • High Accuracy: +/-1.0%
  • Repeatability: +/-0.1%
  • Temperature range: -30°C to +150°C
  • Meter sizes: 3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" and 3"
