Electromagnetic Flow Meter, MAG5100w, HIRE


Summary

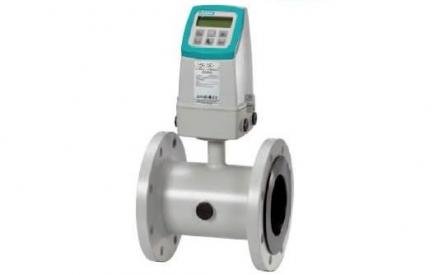

The Mag 5100w flow sensor is an inline electromagnetic flowmeter with outstanding accuracy, suitable for wastewater or drinking water applications. The meter requires only a power supply and conductive media flowing in a full pipe if the pipe drains empty the meter will detect this and tell you via a relay. Mag meters use very little power and produce an almost zero flow restriction improving your pump delivery. The electronics (Mag5000/6000) are mounted directly on top of the meter

Features and Benefits

  • Clear Bore Construction, gives a low cost of ownership as your pumps will not have to work against an obstruction
  • Low Power Consumption, saves you money
  • High accuracy and repeatability, gives you confidence in your flow readings. Typically ±0.42% of rate accuracy (MAG signal converter) Optional ±0.21% of rate accuracy available. (MAG 6000 signal converter)
  • Rugged construction with no moving parts means no wear, tear or clogging and maintenance-free operation for many years.
  • Empty Pipe Detection alerts you when your pipe has run empty and prevents the meter from showing sporadic flow readings.
  • Backlit Display and Keypad, allows users to easily view meters outputs, setting and make changes without the need for additional equipment.
  • Bi-Directional Flow Measurement provides you will all the information on the direction of movement within your pipe.
  • SENSORPROM™ Technology provides automatic download of start-up settings for each transmitter that is connected to the sensor with no loss of calibration information or user setting.

Technical Details

  • Drinking water approved version (EPDM)
  • Conforms to OIML R49 and ISO 4064
  • Operating temperature from -40 to +70°C
  • Simple on-site upgrade to IP 68 of a standard sensor
  • Conforms to EEC directives: PED, LED, EMC
  • Self-diagnostics for easy troubleshooting
  • Build-in length according to ISO 13359 (up to DN400mm)

Tech Spec

  • Sizes from 25mm-200mm Diameter
  • PN16 Flanges
  • Liner EPDM rubber

Applications

  • Chiller Water
  • Mains Water
  • Effluent Flows
  • Test Rigs
  • Waste Water
  • Sewage and Sludge Flows
