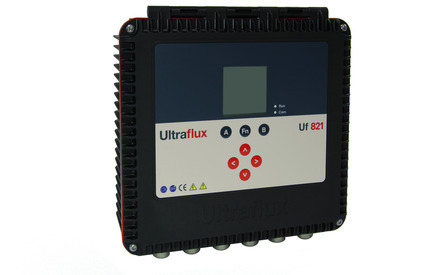

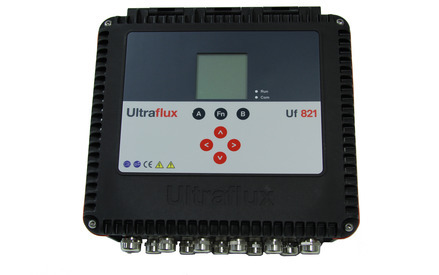

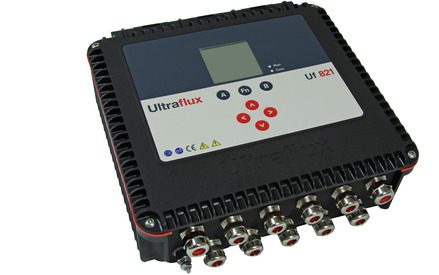

Ultraflux UF821CO Quad Chord/Channel Open Channel Ultrasonic Flow Meter

Ultrasonic Flow Measurement
The UF821CO flow meter measures the velocity of a fluid with ultrasound to calculate average velocity in a channel. This is done by averaging the difference in measured transit time between the pulses of ultrasound traveling with and against the direction of the flow.

Means of operation

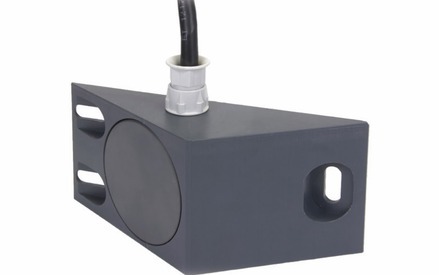

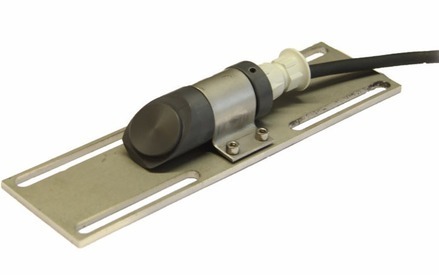

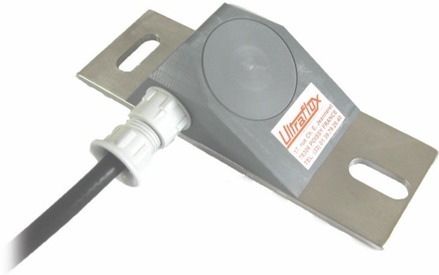

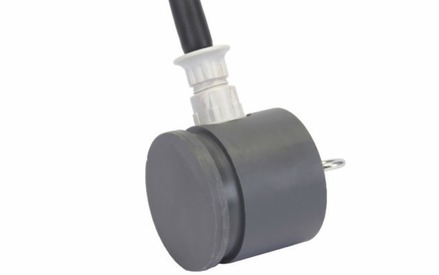

The UF821CO uses inline wetted probes, fixed to your channel walls and connected back to the UF821CO. The probe pairs are normally stacked at different elivations of the pipe to detect a better average of the channel velocity
