Ultraflux Offshore UF841 EXD Single, Dual or Quad Chord & Pipe Clamp on Full Pipe Ultrasonic Flow Meter


Ultrasonic Flow Measurement
The UF841 EXD flow meter measures the velocity of a fluid with ultrasound to calculate average velocity in a pipe. This is done by averaging the difference in measured transit time between the pulses of ultrasound traveling with and against the direction of the flow.

Means of operation

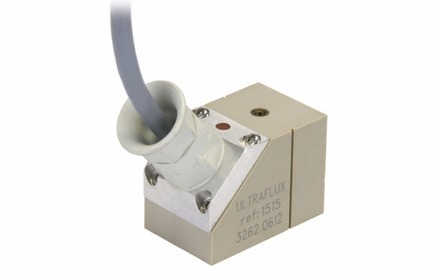

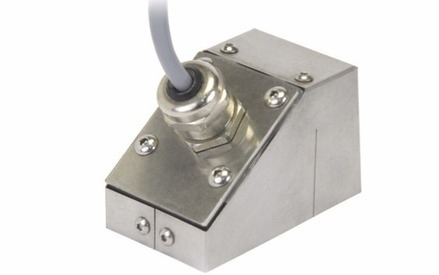

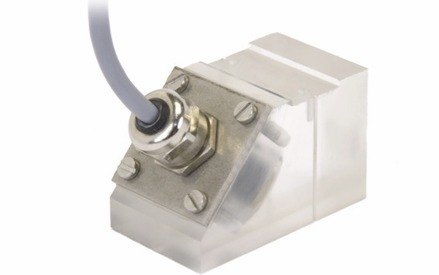

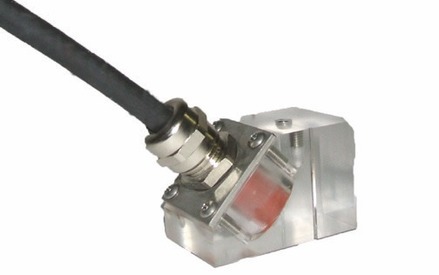

The UF841 EXD can use clamp on probes, or inline wetted probe. The Clamp probes on are simply attached to the outside of the pipe and connected to the UF841 EXD. Clamp on Probes eliminate the need to stop or your flow, or modify your pipe work in anyway, saving you down time and money.

The UF841 EXD is the latest Flow Transmitter from Ultraflux who have over 35years of experience in ultrasonic flow measurement.

External Diameter of pipe From 10mm to 10,000mm
Number of Chords/ number of Pipes   1-4 Chords for use on upto 4 Pipes
Logger 8MB data logger, 1sec-24hr log interval with upto 536'886 records
Communication Serial link RS232 or RS485 to JBUS/MODBUS protocol, USB port
Power supply: 10-32VDC

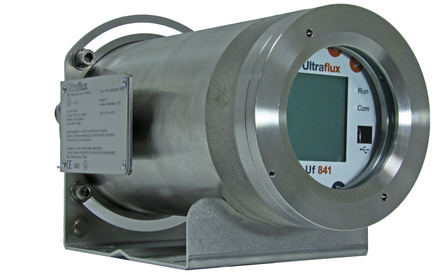

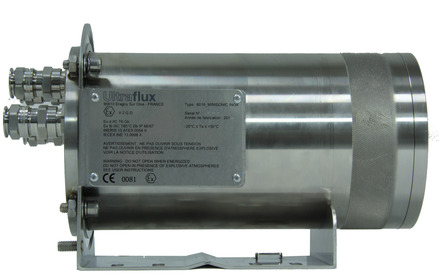

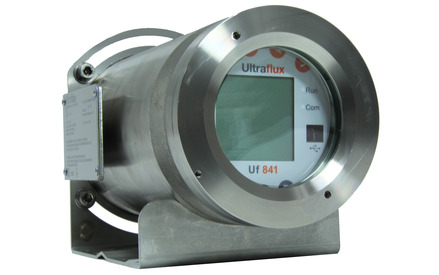

Enclouser : IP67 267mm x 166mm x 166mm

Temperature range -20°C to 50°C

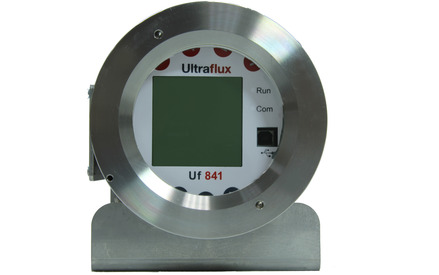

Display Graphical LCD screen (14 lines x 20 characters) Backlit
Input/Output Modals available maximum 4! Please see quote detail for your modals

Features and Benefits

  • Easy Use, Key pad and display as standard, Graphic Screen with Echo, Gain and quality displayed
  • Versitiley, Multi Paramiter logger, Multipule Input and output options
  • Reliable Measurement,  Ten Flow calculations per second, Auto calibration of Zeroflow

Typical Applications
Offshore Oil and Gas Flows
