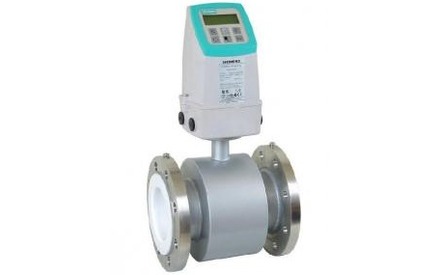

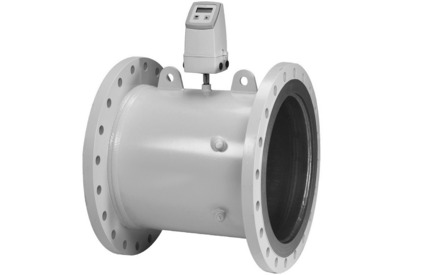

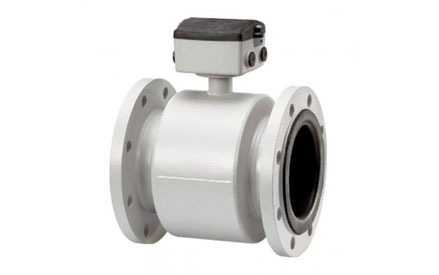

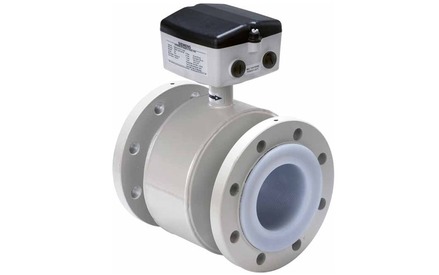

Mag 3100 Industrial Meter
Electromagnetic Mag 3100
|
Performance Specification |
||
| Accuracy (Linear Range) | MAG 5000 signal converter | ± 0.5% of rate |
| MAG 6000 signal converter | ± 0.25% of rate | |
| Operating Specifications | ||
| Fluid Types | Liquids with an electric conductivity of > 5 µs/cm | |
| Measurable Flow Velocities | 0.125 to 10 m/sec | |
| Process Pressure | Up to 40 Bar | |
| Process Temperature Limit | Up to 180 C | |
| Ambient Temperature Limit | Remote signal converter | -40 to 100 °C |
| Integral signal converter | -20 to 50 °C | |
| Liner | Neoprene, EPDM, PTFE, PFA, Ebonite and Linatex | |
| Electrodes | Hastelloy C, Platinum/iridium, Titanium, AISI 316 Ti and Tantalum | |
| Enclosure | IP 67 / 68 | |
| Ex-version |
ATEX EEx [e] [ib] IIB T3-T6 |
|
Applications:
- Conductive liquids Specialized version available for sanitary food applications
- Highly resistant to a wide range of chemicals
- Increased low flow accuracy for water leak detection
- Drinking water approved version
- Conforms to OIML R49 and ISO 4064
- Operating temperature from -40 to 200°C
- Conforms to EEC directives: PED, LED, EMC
- Available in sizes from DN 2 to DN 2000
Easy to use:
- Backlit alphanumeric display
- Electronic unit and display can be rotated for easy viewing
- Bidirectional flow measurement
High accuracy and repeatability:

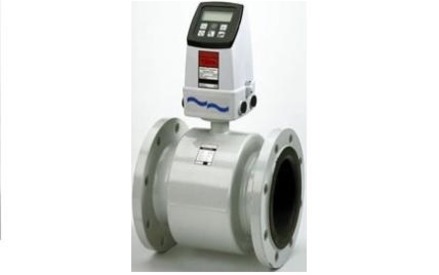

- ±0.5% of rate accuracy (MAG 5000 signal converter)
- Optional ±0.25% of rate accuracy available (MAG 6000 signal converter)
- Calibrated on UKAS EN 45001 accredited calibration facilities with a +/- 0.1% uncertainty
Rugged construction:
- No moving parts to wear down or clog
- Simple onsite upgrade to IP 68 of a standard sensor

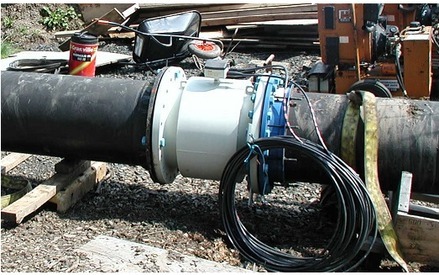

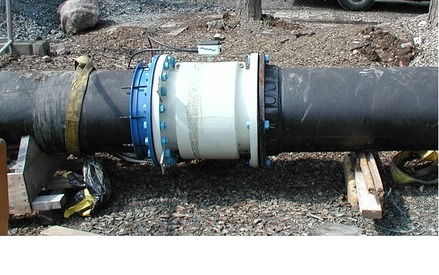

- Suitable for direct burial and constant flooding
Easy maintenance and installation:
- SENSORPROM™ technology provides automatic download of start-up settings
- Self diagnostics
- Build in length according to ISO 13359
Specification information can be found in the Model MAGFLO General Specification document.
