Compressed Air Flow meter, insertion, DFC

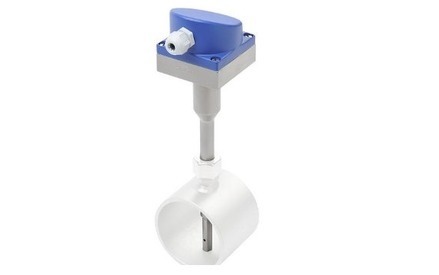

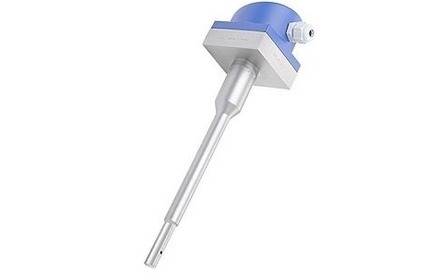

The Systec DFC, A New Differential Pressure Flow Meter

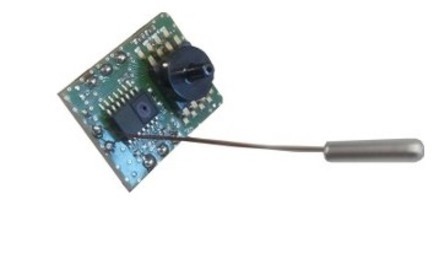

The Systec deltaflowC was developed to meter air and other non-explosive and non-corrosive gases in pipes and channels in a very precise, cost-effective manner. The Systec DeltaFlowC features the smallest and fastest multi-variable transmitter for metering mass flow of gases. DeltaFlowC operates according to the highly precise differential-pressure metering method. Extremely fast sensors for differential pressure, static pressure and temperature, as well as a powerful microcontroller, are integrated in the transducer in an area of just a few cm2.

Typical Applications

  • Pressurized air,
  • Air conditioning,
  • Combustion air regulation of burner air,
  • Dry air,
  • Process air

Advantages

  • All you have to do is weld the stud on the pipe and cable to the transducer and that's all there is to it!
  • DeltaflowC computes the pressure and temperature and directly outputs the mass flow signal
  • DeltaflowC additionally provides output for temperature or pressure
  • External pressure and temperature sensors are not required
  • Complex compensation processing is not required
  • Simple setup, no programming just Dip switches.

Zero Maintenance and Zero Drift

Thanks to modern microcontroller technology, DeltaflowC offers an outstanding high zero point stability, a large measurement range, high accuracy and high measurement dynamics.

DeltaflowC compensates the influence of pressure and temperature on the measurement and provides the (compensated) mass flow to the user. Unlike other measuring methods, such as thermal mass flow meters, DeltaflowC is particularly resistant to condensation and dirt deposits. Together with the automatic zero-point correction, this makes the DeltaflowC virtually zero maintenance and zero drift.

High Accuracy

The Systec DeltaflowC is available in two accuracy classes. The standard type offers an accuracy of 4%. DeltaflowC is also available as a calibrated probe with a calibration certificate and an accuracy of 2%.
