Beluga Open Channel Flow Meter


The BELUGA combines most advanced utrasonic Doppler velocity sensing with most modern and powerful digital DSP processor technology resulting in more representative velocity data. This advanced architecture of the BELUGATM provides users desiring in-depth analysis with:

Real-time spectral analysis of the velocity distribution through the cross-sectional area
Measurement validation through quality parameters
Auto-diagnostic tools

Combine the BELUGA with an IFQ MONITOR for stationary flow monitoring or with an IFQ LOGGER for portable/temporary flow monitoring.

KEY FEATURES:

Improved accuracy due to digital spectral analysis of the velocity distribution
Easy integration with existing SCADA or telemetry systems
Embedded RS485 communication port with Modbus ASCII protocol
Straight 4-20 mA output for velocity
ERTACETAL outer shell with epoxy potting within
IP68 enclosure

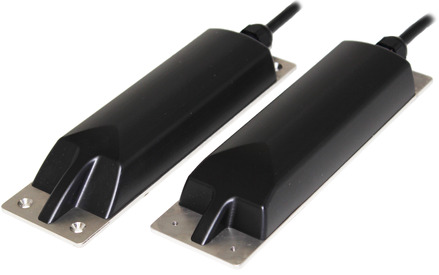

Available in 2 versions: 20° and 45°

Make an enquiry
Available Downloads
